General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: OMNI650LCD
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Line: OmniSmart
Product Model: OMNI900LCD

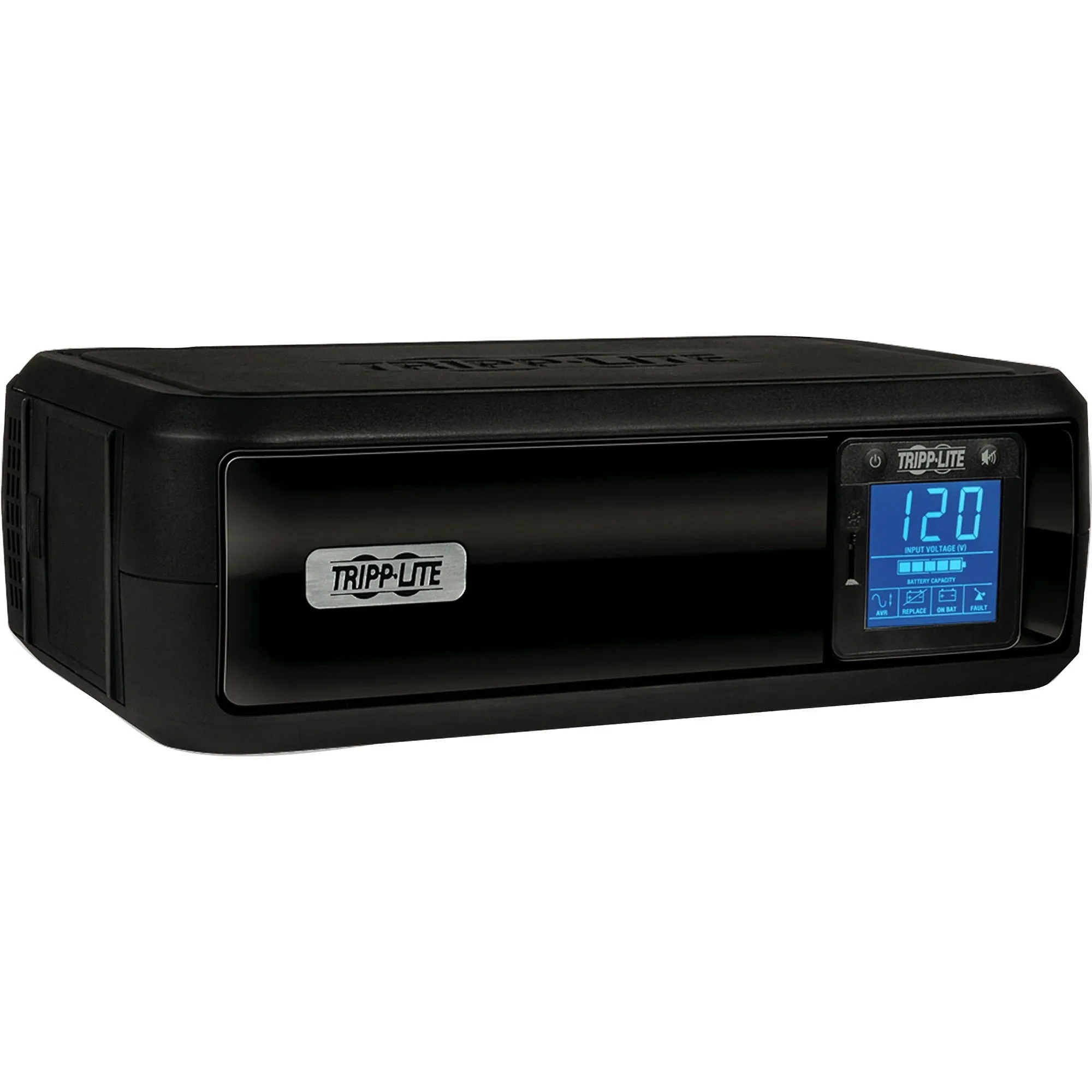

Product Name: OmniSmart 650 VA Digital UPS
Marketing Information: Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers and more. Internal UPS circuits support entry-level PCs for up to 40 minutes or individual VCR/DVR components for as long as 2 hours during power failures. Prevents data loss, viewing interruptions and loss of programming. AVR circuits regulate brownouts as low as 89v back to usable levels without consuming battery power. Includes four battery-supported/surge-protected outlets, plus four additional surge suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown. Includes cable. HID-compliant USB interface enables full integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Offers three-minute battery runtime with full load of 650VA/350W and 12 minute with half load of 325VA/175W.
Packaged Quantity: 1 Each
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacles: 8 x NEMA 5-15R
Protection Type: Brownout
Cord Length: 6 ft

Power Description

Load Capacity: 650 VA/350 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 480 J

Management

Alarm: Self-test Operation

Controls/Indicators

Status Indicators:

• Input Voltage : Shows actual incoming voltage in real time
• Battery Charge : Shows approximate charge available on the battery
• Automatic Voltage Regulation (AVR) : Illuminates to indicate the UPS is automatically regulating incoming voltage without draining battery power
• Battery Recharge/Replace : Illuminates to indicate the UPS batteries need to be recharged or replaced (following a self-test)
• Battery Backup : Illuminates to indicate that the UPS is supplying battery power to connected equipment
• Output Load Level : Illuminates when the electrical load of connected equipment exceeds the capacity of the UPS

Interfaces/Ports

USB: Yes

Battery Information

Backup/Run Time (Full Load): 3.20 Minute
Backup/Run Time (Half Load): 12 Minute
Typical Battery Recharge Time: 8 Hour

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)

Physical Characteristics

Color: Black
Height: 3.7"
Width: 12"
Depth: 7.2"
Weight (Approximate): 14.60 lb

Miscellaneous

Package Contents:

• OmniSmart 650 VA Digital UPS
• OMNI650LCD Digital UPS System
• Manual with warranty information

Recycled: No
Assembly Required: No
Environmentally Friendly: Yes
Country of Origin: China

Warranty

Limited Warranty: 3 Year
