General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: INTERNET350U
Manufacturer Website Address:
Brand Name: Tripp Lite

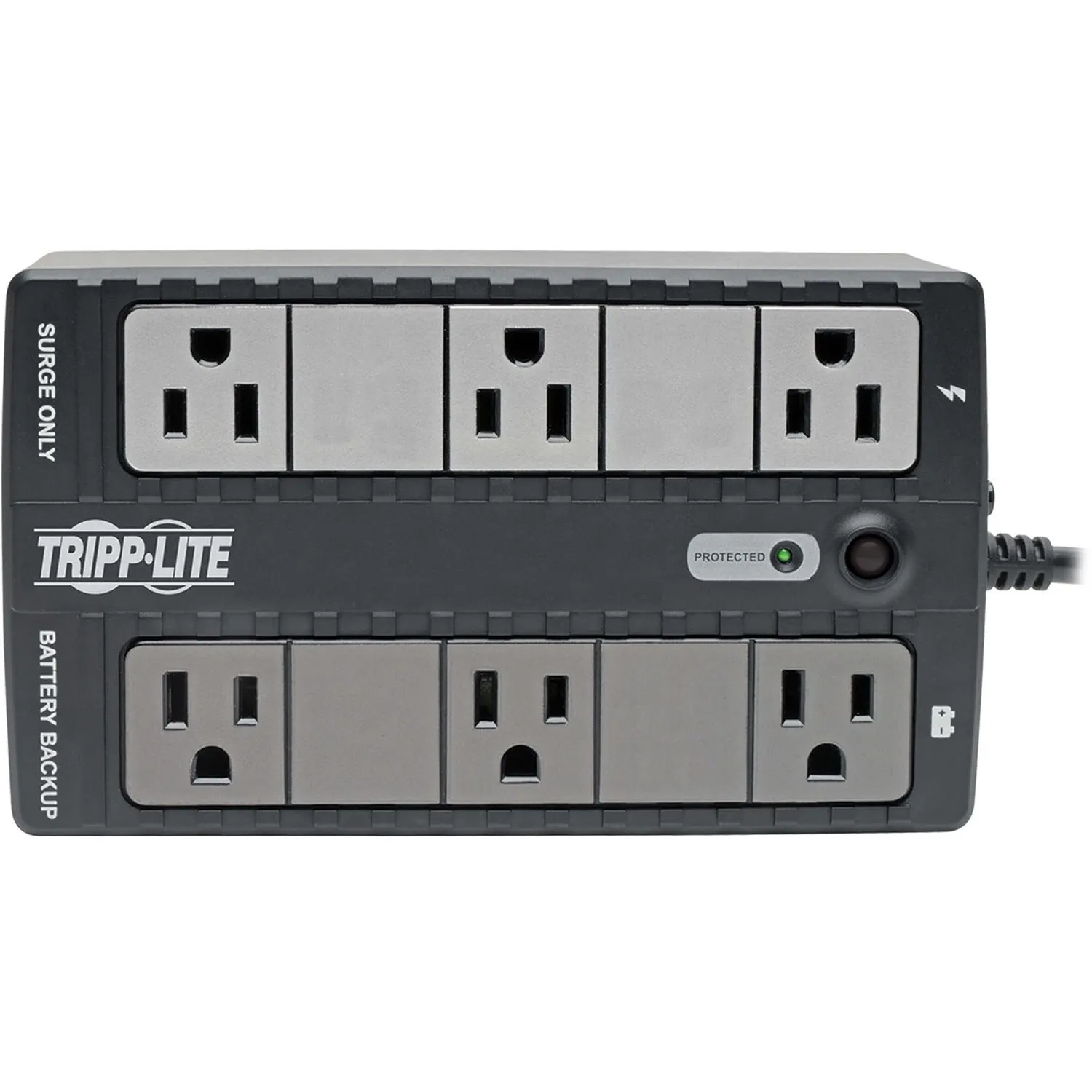

Product Name: 3UPS/Surge 3 Surge UPS System
Marketing Information: UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts, blackouts and transient surges on both AC and dial-up modem lines. Wall-mountable, ultra-compact, flat-pack UPS includes three battery supported outlets for computer, monitor and one vital system peripheral plus three additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in, single-line, RJ11 phone suppression jacks with line splitter protects up to two directly connected modems, fax machines, cordless phones or other peripherals with a standard, dial-up phone connection. Built-in audible alarm and front panel LEDs offer continuous status information regarding line and battery power operation. 350VA/180 watt power handling ability supports entry-level PCs for up to 15 minutes during power failures.
Product Type: Standby UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacles: 6 x NEMA 5-15R
Dataline Protection: RJ-11
Protection Type:

• Brownout
• Black Out

Cord Length: 6 ft
Transfer Time: 4 ms

Power Description

Load Capacity: 350 VA/180 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 316 J

Management

Alarm:

• On Battery
• Self-test Operation

Controls/Indicators

Status Indicators:

• Line Power
• Battery Power Status

Interfaces/Ports

Modem (RJ-11): Yes
USB: Yes

Battery Information

Battery Chemistry: Sealed Lead Acid (SLA)
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 7 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 4 Hour
Hot Swappable: Yes

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)
Sound Emission: 40 dB

Physical Characteristics

Color: Black
Height: 4"
Width: 12"
Depth: 7"
Form Factor: Ultra-compact Desk-mount
Weight (Approximate): 7.70 lb

Miscellaneous

Package Contents:

• Internet Office 350VA UPS
• UPS System
• USB communications cable
• Instruction manual with warranty information

Additional Information:

• Line mode BTU/hr. (Max.): 15.7
• Battery mode BTU/hr. (Max.): 53.2
• Cold Start: Inverter can be cold started to enable temporary AC output during a power failure
• Switches: Combination power off / on / self-test push button switch

Certifications & Standards:

• UL1778 (USA)
• cUL (Canada)
• FCC Class B (emissions)
• NOM (Mexico)
• FCC Part 68 / Industry Canada (telecommunications)
• Conforms to IEEE 587 / ANSI C62.41 specifications

Software Included: PowerAlert Software
Assembly Required: No
Country of Origin: China

Warranty

Limited Warranty: 3 Year
